Wyandotte Machine Shop Liquidation Auction

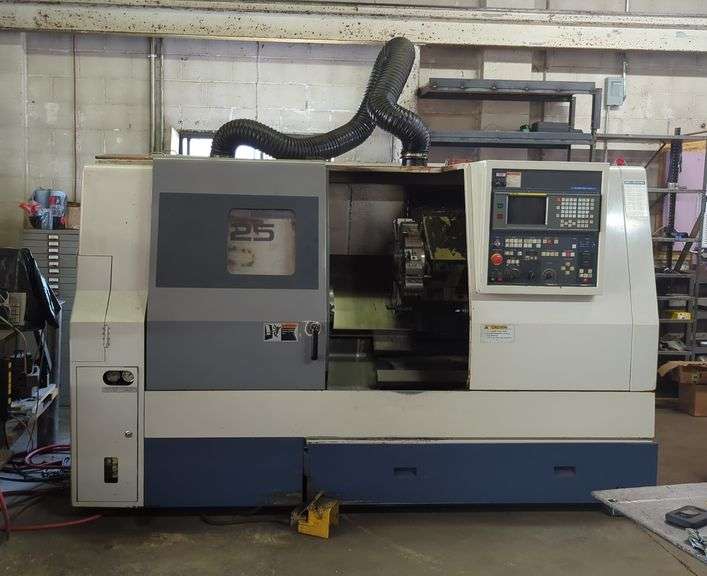

1994 Mori Seiki SL-25 CNC turning Center, Model SL-25B/500 Serial Number 6644. 2-Axis machine, 20.47" Swing Over Bed, 24.81" Distance Between Centers, 10.24 Max Machining Diameter, 6.3" X-Travel, 23.23" Z-Travel, 42-4200 Spindle Speed Range, A2-6 Spindle Nose, 3.15" Spindle Bore, 10-Station Turret, 3MT Tailstock, Fanuc MF-T6 CNC Controls, 10" Chuck, Coolant Tank & Pump, Mist Collector, Manuals, Powers On, 220V 3-PH, 70.75" x 113" x 60", approx 9300 LBS Bidder Responsible For Proper Electrical Disconnection, Capping, And Removal, See Details For Video

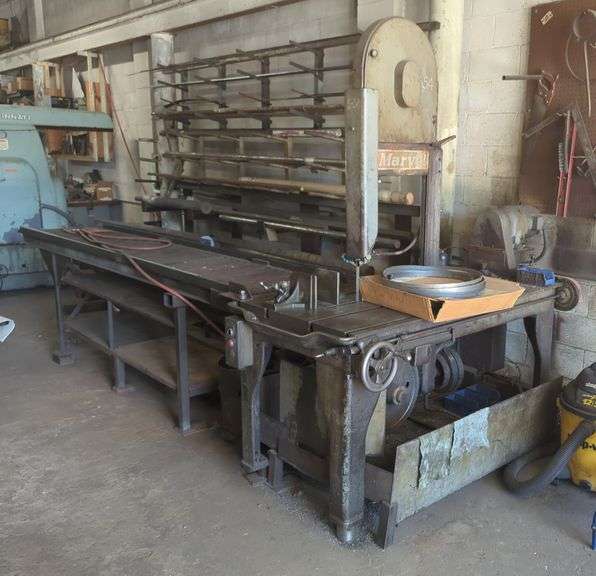

Armstong-Blum Marvel Series 8 Model 8/M8 Metal Cuting Vertical Bandsaw, Serial Number 89088. Capacity: 18" x 20" @ 90 Deg, 15.5" x 18 @ 45 Deg, Blade Size: 14' 8-3/8" x 3/4" x .032", 3-Speed: 80-115-200, Includes infeed conveyor (10' x 24"), 90" x 80" x 36" approx 2500 lbs

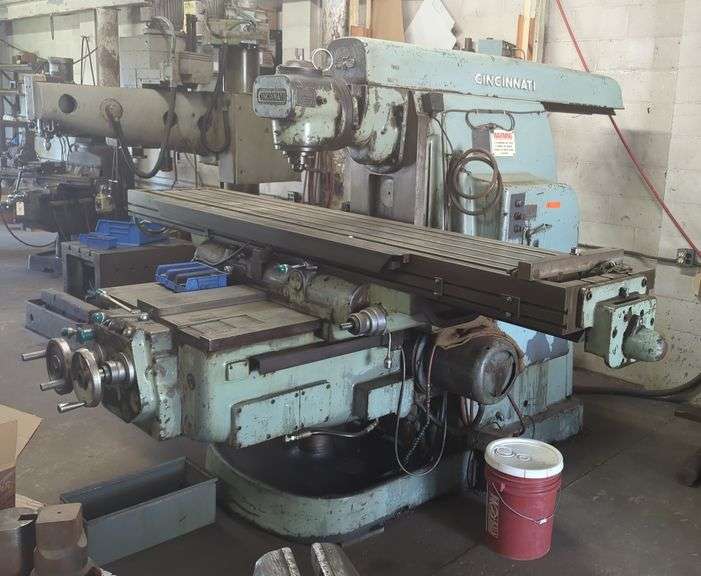

Cincinnati #6 Dial Type Horizontal Milling Machine, Model 620-20 PL-ELA, Serial Number: 4A6P5RE-1. With Vertical Head, 23" x 104" Table, X-Travel: 60", Cross Travel: 14.5" Knee Travel: 20", NMTB 50 Taper Spindle, Spindle Speeds: (14) 14-1400, Longitudinal & Cross Feeds, 3-Axis DRO, assorted Hold downs, 82" x 130" x 134" Estimated 16,500 lbs
1995 Hercules Model GR-512 Radiam Arm Drill, Serial Number 69-2921610000, 5' Arm, 12.5" Column, 49" Max from Column to Spindle, 5MT Spindle, 2" Drilling Capacity in Steel, Speeds: (18) 40-1800, Feed Range: 0.04-0.63 mm/rev, Heavy Duty T-Slotted Table & Hold downs 220V 3PH, 112" x 80" x 36" approx 7900 lbs
KBC Model CK-VH16TM Variable Speed Vertical Milling Machine, Serial Number 3KV931914, 3HP, Variable Speeds, 2-Speed Ranges, R8 Spindle, Power Longitudinal Feed, Mitutoyo Scales but no DRO, 6" Machine Vise, 112" x 80" x 36" approx 1950 lbs
Exacto / KBC Model 942B Variable Speed Vertical Milling Machine, Serial Number 124453. (Exacto Base with a KBC milling head). 9" x 42" T-Slotted Table, Longitudinal Powerfeed, 2-Axis DRO,R8 Spindle, Infinitely Variable Speeds, 2-Speed Ranges, 3HP, Includes Manuals, 90" x 60" x 55" approx 1950 lbs
Broadbent Engine Lathe Serial Number 1610010164, 36" Swing Over Bed, 28" Swing Over Cross Slide, 17' Distance Between Centers, 4-Jaw Chuck, Inch/Metric Threading, Speeds (18) 4-240 RPM
Sharp (Ta Shing) 21120 Gap Bed Engine Lathe, Serial Number L30033. 21" Swing Over Bed, 120" Distance Between Centers, 12-1/4" Swing over Cross Slide, Inch, Metric & Modular Pitch Threading, Speeds: (12) 14-1680, 3-Jaw Chuck, Steady Rest, Travadial, Tool Post, Coolant Tank & Pump, D1-8 Spindle Nose, approx 8,500 lbs
Tarnow (Toolmex) Model TUJ-50M/120 Gap Bed Engine Lathe, Serial Number 3065, 22" Swing Over Bed, 120" Between Centers, 31-1/2" Swing in Gap, 14.5" Swing over carriage, Speeds: (18) 20-1800, 3-1/2" Spindle Bore, Camlock D1-11 Spindle Nose, Inch, Metric, Modular Pitch Threading, Tool Post, Steady Rest, 3-Jaw Chuck, Chip Pans, Approx 9,500 lbs
Baldor Cat No 500 Pedestal Tool Grinder, Serial Number F1078 Tilting Tables, Diamond Grinding Wheel, partial Work Light, 1/2 HP, 3450 RPM, 115V Single Phase
